Installation advice
Arrangement

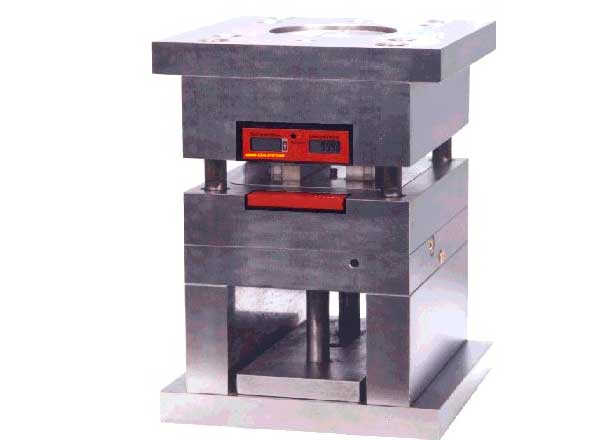

Counter and magnet cycle sensor shall arranged at the injektion mold and ejctor side. At each machine cycle the counter gets an impulse.
| |
 |
| |
|
| |
Installation advice |
| |
Regular counter and magnet cycle sensor are installed by frame into two milled pockets.
For subsequent installation the manufacturer recommends to use mounting brackets.
For higher temperature (60°C/167°F) see installation instructions. |
|
|
|
|
|
